# 1. 功能说明
保存所有节点数据信息，包括节点路径、节点内容、acl权限、ttl过期时间、当前节点的监听事件

# 2. 主要成员变量

- NodeHashMap nodes   所有节点集合
- IWatchManager dataWatches  数据监听器
- IWatchManager childWatches  子节点监听器
- AtomicLong nodeDataSize   存储内容大小
-  Map<Long, HashSet<String>> ephemerals  零时节点集合，key 为seesionid。value为当前连接的所有零时节点集合
-  ReferenceCountedACLCache aclCache 权限控制缓存器，所有节点的权限都在这里进行缓存

## 2.1 NodeHashMap nodes

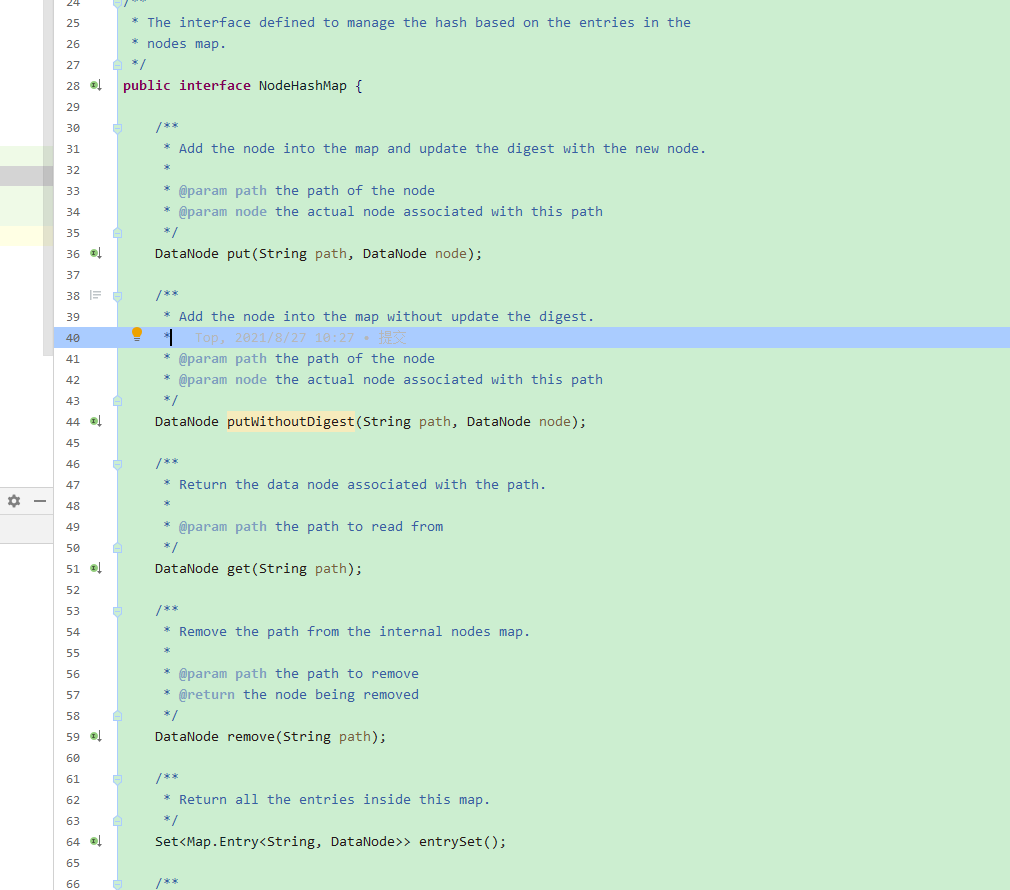

所有的节点与节点数据都保存在这里。我们先看NodeHashMap接口

![7ce40f22c4eaf41c55881aee1607ede1.png](//cdn.hiboot.cn/3876d8e2d55f450f9f2744fba69582df.png)

我们发现他定义的接口和我们java中 Map的接口非常相似，其中 key 为 节点的路径，而值 则是DataNode结构的节点

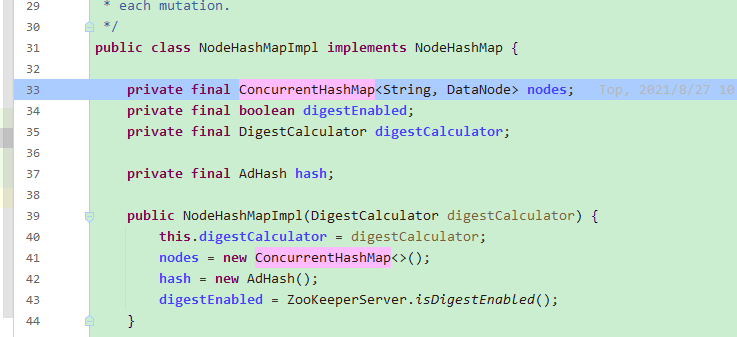

我们再看一下它的实现NodeHashMapImpl

![8887efd833a3371e4429e4f31a293440.png](//cdn.hiboot.cn/37baf8122d6b4103af04fbc5a4caf9b5.png)

我们看到他其实就是一个ConcurrentHashMap。

到这里，我们知道zookeeper的数据在内存中通过一个map进行存储数据，map中：key为全路径的path。值为当前节点的全部信息

## 2.2 DataNode

在上一节中我们看到数据的值是DataNode结构。我们详细看看DataNode内部都保存了哪些数据

- long digest 校验码
- byte[] data 节点数据
- Long acl 权限验证，这里保存的是id。我们可以用ReferenceCountedACLCache对象通过这个id获取真正的权限
- StatPersisted stat 节点状态，也就是我们通过get命令获取到的一些信息
-  Set<String> children 子节点

## 2.3 digest
数据校验码，用与数据的校验，判断两个节点是否相同。

### 2.3.1 作用

首先在每个节点中有这个校验码，用于判断每个节点内容。

其次在NodeHashMapImpl的成员变量中我们也看到了一个`AdHash hash`对象。

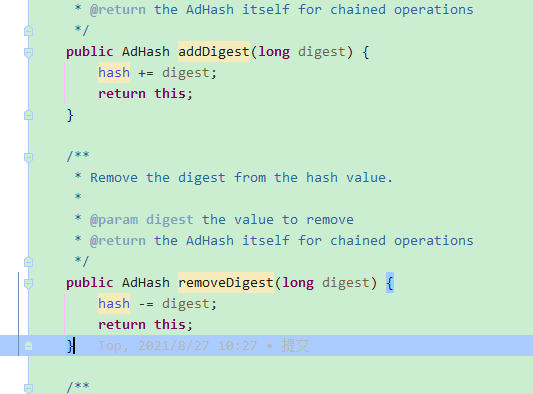

它的方法就是将每个节点的digest求和。我们看到在add和remove中有下面的方法
![8887efd833a3371e4429e4f31a293440.png](//cdn.hiboot.cn/a7928e9338f544258da4a6f17a189ac0.png)

也就是说AdHash hash保存的是对于整个DataTree是否相同的判断。

这个将在我们集群计算多个节点数据是否同步、当前内存数据与快照数据是否相同的时候进行使用。

### 2.3.2 生成

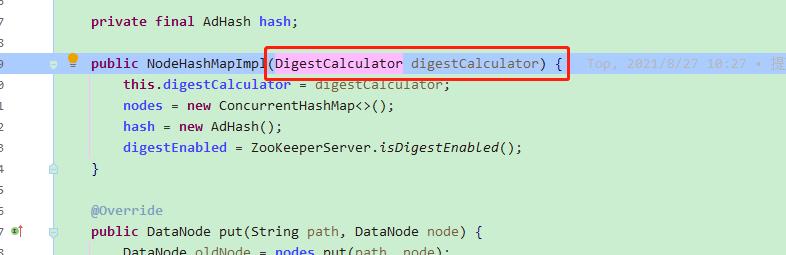

![eef611128bfce4df5ce92d8a21dbd760.png](//cdn.hiboot.cn/5612bcd5d7a0480ca89bbdfef38ec369.png)

这个都是通过DigestCalculator对象进行生成，其具体通过CRC32算法进行计算。

## 2.4 Map<Long, HashSet<String>> ephemerals

保存零时节点。我们知道临时节点再其连接断开后，节点就会自动删除，而这个map就是保存的所有零时节点路径。

key是连接sessionid。当某个节点断开后。我们就可以通过seessionid获取到这个零时节点的所有路径集合，就可以进行删除

## 2.5 IWatchManager

保存监听事件，单独说明

## 2.6 ReferenceCountedACLCache

权限控制缓存器

在每个节点都可以设置自己的权限，并且一个节点可以设置多个权限。

而ReferenceCountedACLCache对象就是通过一个map，将权限进行缓存，返回给我们一个id。

我们在datanode中值保存这个id。如果需要具体的权限，就通过当前对象进行获取。

下面就是保存acl的代码

```java

public synchronized Long convertAcls(List<ACL> acls) {
        if (acls == null) {
            return OPEN_UNSAFE_ACL_ID;
        }

// get the value from the map
        Long ret = aclKeyMap.get(acls);
        if (ret == null) {
            ret = incrementIndex();
            longKeyMap.put(ret, acls);
            aclKeyMap.put(acls, ret);
        }

addUsage(ret);

return ret;
    }
    private long incrementIndex() {    return ++aclIndex;}

```

# 3. DataTree主要方法

上一章中。我们大致说明了几个成员变量具体的作用。下面我们看看DataTree主要几个方法

## 3.1 初始化

```JAVA

DataTree(DigestCalculator digestCalculator) {
        this.digestCalculator = digestCalculator;
        nodes = new NodeHashMapImpl(digestCalculator);

/* Rather than fight it, let root have an alias */
        //初始化根路径
        nodes.put("", root);
        nodes.putWithoutDigest(rootZookeeper, root);

/** add the proc node and quota node */
        //初始化zookeeper路径
        root.addChild(procChildZookeeper);
        nodes.put(procZookeeper, procDataNode);
        //初始化/zookeeper/quota路径
        procDataNode.addChild(quotaChildZookeeper);
        nodes.put(quotaZookeeper, quotaDataNode);
        //初始化/zookeeper/config路径，其中保存了集群信息
        addConfigNode();

nodeDataSize.set(approximateDataSize());
        try {
            dataWatches = WatchManagerFactory.createWatchManager();
            childWatches = WatchManagerFactory.createWatchManager();
        } catch (Exception e) {
            LOG.error("Unexpected exception when creating WatchManager, exiting abnormally", e);
            ServiceUtils.requestSystemExit(ExitCode.UNEXPECTED_ERROR.getValue());
        }
    }

```

## 3.2 create创建节点
```java

public void createNode(final String path, byte[] data, List<ACL> acl, long ephemeralOwner, int parentCVersion, long zxid, long time, Stat outputStat) throws KeeperException.NoNodeException, KeeperException.NodeExistsException {
        int lastSlash = path.lastIndexOf('/');
        String parentName = path.substring(0, lastSlash);
        String childName = path.substring(lastSlash + 1);
        //创建节点的基本信息
        StatPersisted stat = createStat(zxid, time, ephemeralOwner);
        //获取父节点
        DataNode parent = nodes.get(parentName);
        if (parent == null) {
            throw new KeeperException.NoNodeException();
        }
        synchronized (parent) {
            // Add the ACL to ACL cache first, to avoid the ACL not being
            // created race condition during fuzzy snapshot sync.
            //
            // This is the simplest fix, which may add ACL reference count
            // again if it's already counted in in the ACL map of fuzzy
            // snapshot, which might also happen for deleteNode txn, but
            // at least it won't cause the ACL not exist issue.
            //
            // Later we can audit and delete all non-referenced ACLs from
            // ACL map when loading the snapshot/txns from disk, like what
            // we did for the global sessions.
            //获取acl的id编号
            Long longval = aclCache.convertAcls(acl);
            //判断当前父节点是否已经有了同名节点
            Set<String> children = parent.getChildren();
            if (children.contains(childName)) {
                throw new KeeperException.NodeExistsException();
            }
            //判断是否需要跟新父节点版本号，一般添加的节点是零时节点的时候不改变
            nodes.preChange(parentName, parent);
            if (parentCVersion == -1) {
                parentCVersion = parent.stat.getCversion();
                parentCVersion++;
            }
            // There is possibility that we'll replay txns for a node which
            // was created and then deleted in the fuzzy range, and it's not
            // exist in the snapshot, so replay the creation might revert the
            // cversion and pzxid, need to check and only update when it's
            // larger.
            //跟新父节点
            if (parentCVersion > parent.stat.getCversion()) {
                parent.stat.setCversion(parentCVersion);
                parent.stat.setPzxid(zxid);
            }
            //组装DatNode对象
            DataNode child = new DataNode(data, longval, stat);
            //添加
            parent.addChild(childName);
            nodes.postChange(parentName, parent);
            //跟新数据大小
            nodeDataSize.addAndGet(getNodeSize(path, child.data));
            nodes.put(path, child);
            //如果是零时节点，进行添加到ephemerals对象中
            EphemeralType ephemeralType = EphemeralType.get(ephemeralOwner);
            if (ephemeralType == EphemeralType.CONTAINER) {
                containers.add(path);
            } else if (ephemeralType == EphemeralType.TTL) {
                ttls.add(path);
            } else if (ephemeralOwner != 0) {
                HashSet<String> list = ephemerals.get(ephemeralOwner);
                if (list == null) {
                    list = new HashSet<String>();
                    ephemerals.put(ephemeralOwner, list);
                }
                synchronized (list) {
                    list.add(path);
                }
            }
            if (outputStat != null) {
                child.copyStat(outputStat);
            }
        }
        // now check if its one of the zookeeper node child
        //zookeeper节点特殊处理
        if (parentName.startsWith(quotaZookeeper)) {
            // now check if its the limit node
            if (Quotas.limitNode.equals(childName)) {
                // this is the limit node
                // get the parent and add it to the trie
                pTrie.addPath(Quotas.trimQuotaPath(parentName));
            }
            if (Quotas.statNode.equals(childName)) {
                updateQuotaForPath(Quotas.trimQuotaPath(parentName));
            }
        }

String lastPrefix = getMaxPrefixWithQuota(path);
        long bytes = data == null ? 0 : data.length;
        // also check to update the quotas for this node
        if (lastPrefix != null) {    // ok we have some match and need to update
            updateQuotaStat(lastPrefix, bytes, 1);
        }
        updateWriteStat(path, bytes);
        //触发事件
        dataWatches.triggerWatch(path, Event.EventType.NodeCreated);
        childWatches.triggerWatch(parentName.equals("") ? "/" : parentName, Event.EventType.NodeChildrenChanged);
    }   public void createNode(final String path, byte[] data, List<ACL> acl, long ephemeralOwner, int parentCVersion, long zxid, long time, Stat outputStat) throws KeeperException.NoNodeException, KeeperException.NodeExistsException {
        int lastSlash = path.lastIndexOf('/');
        String parentName = path.substring(0, lastSlash);
        String childName = path.substring(lastSlash + 1);
        //创建节点的基本信息
        StatPersisted stat = createStat(zxid, time, ephemeralOwner);
        //获取父节点
        DataNode parent = nodes.get(parentName);
        if (parent == null) {
            throw new KeeperException.NoNodeException();
        }
        synchronized (parent) {
            // Add the ACL to ACL cache first, to avoid the ACL not being
            // created race condition during fuzzy snapshot sync.
            //
            // This is the simplest fix, which may add ACL reference count
            // again if it's already counted in in the ACL map of fuzzy
            // snapshot, which might also happen for deleteNode txn, but
            // at least it won't cause the ACL not exist issue.
            //
            // Later we can audit and delete all non-referenced ACLs from
            // ACL map when loading the snapshot/txns from disk, like what
            // we did for the global sessions.
            //获取acl的id编号
            Long longval = aclCache.convertAcls(acl);
            //判断当前父节点是否已经有了同名节点
            Set<String> children = parent.getChildren();
            if (children.contains(childName)) {
                throw new KeeperException.NodeExistsException();
            }
            //判断是否需要跟新父节点版本号，一般添加的节点是零时节点的时候不改变
            nodes.preChange(parentName, parent);
            if (parentCVersion == -1) {
                parentCVersion = parent.stat.getCversion();
                parentCVersion++;
            }
            // There is possibility that we'll replay txns for a node which
            // was created and then deleted in the fuzzy range, and it's not
            // exist in the snapshot, so replay the creation might revert the
            // cversion and pzxid, need to check and only update when it's
            // larger.
            //跟新父节点
            if (parentCVersion > parent.stat.getCversion()) {
                parent.stat.setCversion(parentCVersion);
                parent.stat.setPzxid(zxid);
            }
            //组装DatNode对象
            DataNode child = new DataNode(data, longval, stat);
            //添加
            parent.addChild(childName);
            nodes.postChange(parentName, parent);
            //跟新数据大小
            nodeDataSize.addAndGet(getNodeSize(path, child.data));
            nodes.put(path, child);
            //如果是零时节点，进行添加到ephemerals对象中
            EphemeralType ephemeralType = EphemeralType.get(ephemeralOwner);
            if (ephemeralType == EphemeralType.CONTAINER) {
                containers.add(path);
            } else if (ephemeralType == EphemeralType.TTL) {
                ttls.add(path);
            } else if (ephemeralOwner != 0) {
                HashSet<String> list = ephemerals.get(ephemeralOwner);
                if (list == null) {
                    list = new HashSet<String>();
                    ephemerals.put(ephemeralOwner, list);
                }
                synchronized (list) {
                    list.add(path);
                }
            }
            if (outputStat != null) {
                child.copyStat(outputStat);
            }
        }
        // now check if its one of the zookeeper node child
        //zookeeper节点特殊处理
        if (parentName.startsWith(quotaZookeeper)) {
            // now check if its the limit node
            if (Quotas.limitNode.equals(childName)) {
                // this is the limit node
                // get the parent and add it to the trie
                pTrie.addPath(Quotas.trimQuotaPath(parentName));
            }
            if (Quotas.statNode.equals(childName)) {
                updateQuotaForPath(Quotas.trimQuotaPath(parentName));
            }
        }

```
